Neo4j Tutorial: Home Mobile Device Management System

In this article, we will model a graph network for managing home devices using Neo4j Aura and Cypher.

Problem Statement

With the rise of digitalization, it has become common for individuals to own multiple devices.

People often have more than one smartphone, a work laptop, a tablet for home use, a wearable device on their wrist, a computer connected to their TV, and various other home devices and gaming consoles. The number of devices in a household continues to grow.

Let's assume there is a need to develop an application that can manage all personal devices within a household, visualizing OS updates, maintenance, and account usage.

As a solution, we will create a graph network representing a simple Mobile Device Management System (MDM).

Alice as a User

Alice owns an iPhone 13 and a MacBook Pro 16-inch. We will represent her with a User node and her devices with Device nodes, connected by the [:OWNS] relationship.

CREATE (u:User {name: 'alice'}),
    (u)-[:OWNS]->(d1:Device:Asset:Mobile {id: 1, name: 'iPhone 13'}),
    (u)-[:OWNS]->(d2:Device:Asset:Computer {id: 2, name: 'Macbook Pro 16 inch'});

Modeling Considerations

One approach to modeling devices is to use only a generic Device label and store the type as a property, such as Device {type: 'iPhone'}.

However, a common use case is querying for all iPhones owned by a household. In such cases, it is more efficient to use multiple labels (Mobile, Computer, etc.) rather than relying on properties.

Additionally, ensuring that every device has a Device label allows for queries that retrieve all devices in a household.

Adding Bob as a User

Bob owns multiple devices. Let's add his data to the existing graph network.

CREATE (u:User {name: 'bob'}),
    (u)-[:OWNS]->(d1:Device:Asset:Mobile {id: 3, name: 'iPhone 10'}),
    (u)-[:OWNS]->(d2:Device:Asset:Computer {id: 4, name: 'Macbook Air 13 inch'}),
    (u)-[:OWNS]->(d3:Device:Asset:Computer {id: 5, name: 'Macbook Pro 16 inch'}),
    (u)-[:OWNS]->(d4:Device:Asset:Smartwatch {id: 6, name: 'Apple Watch Series 7'});

Let's also define the relationship between Alice and Bob. They are parent and child.

MATCH (a:User), (b:User)
WHERE a.name = 'alice' AND b.name = 'bob'
CREATE (a)-[:PARENTS_OF]->(b), (b)-[:CHILD_OF]->(a);

First Iteration of the Graph Network

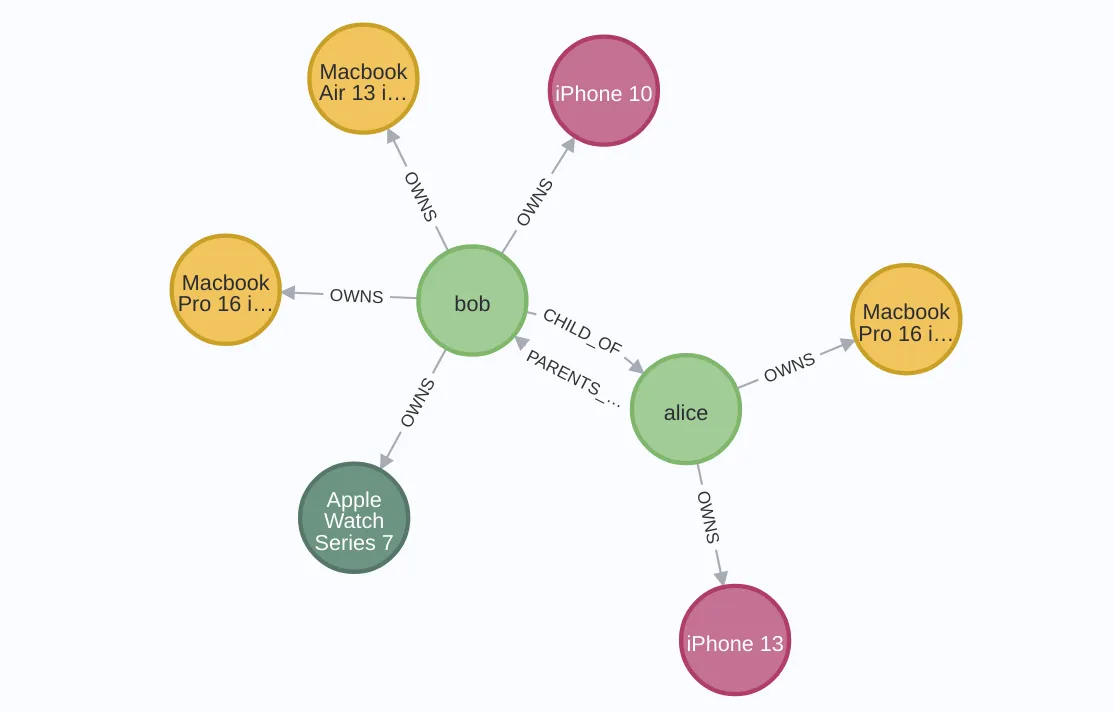

At this stage, the graph network should look like this:

For example, to retrieve all Mobile devices in the household, use the following Cypher query:

MATCH (m:Mobile) RETURN m.id, m.name;

To retrieve all Computer devices owned by Bob:

MATCH (u:User)-[:OWNS]->(c:Computer)
WHERE u.name = 'bob'
RETURN u.name, c.id, c.name;

Introducing Product Labels

Now, let's manage devices by product type. For instance, we may want to track which users own different iPhone models.

To achieve this, we will introduce Product nodes and link them to existing Device nodes.

MacBook

CREATE (p:Product {name: 'Macbook'});

MATCH (p:Product), (d:Device)
WHERE p.name = 'Macbook' AND d.name IN ['Macbook Air 13 inch', 'Macbook Pro 16 inch']
CREATE (d)-[:PRODUCTS_OF]->(p);

iPhone

CREATE (p:Product {name: 'iPhone'});

MATCH (p:Product), (d:Device)
WHERE p.name = 'iPhone' AND d.name IN ['iPhone 13', 'iPhone 10']
CREATE (d)-[:PRODUCTS_OF]->(p);

Apple Watch

CREATE (p:Product {name: 'Apple Watch'});

MATCH (p:Product), (d:Device)
WHERE p.name = 'Apple Watch' AND d.name IN ['Apple Watch Series 7']
CREATE (d)-[:PRODUCTS_OF]->(p);

Second Iteration of the Graph Network

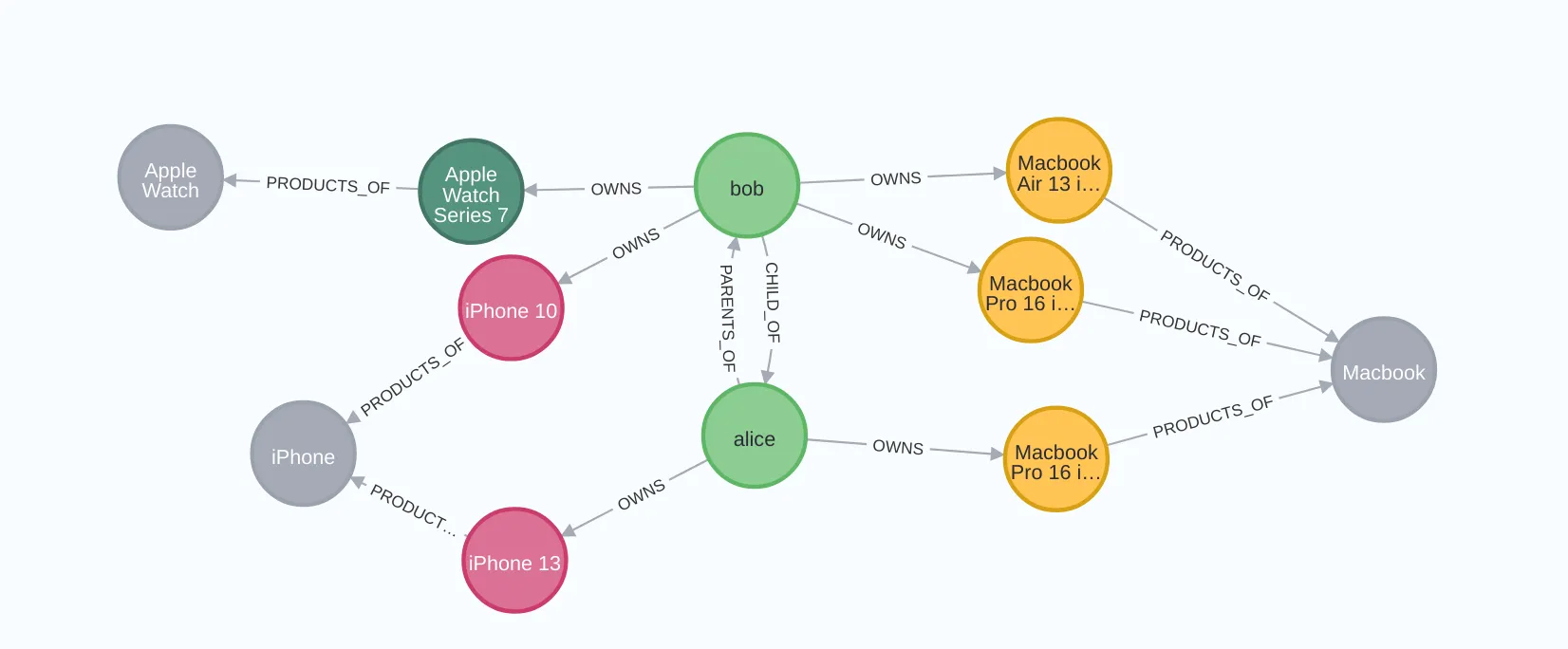

At this stage, the updated graph network should look like this:

To find all iPhone products owned by Alice, use:

MATCH (u:User)-[:OWNS]->(d:Device)-[:PRODUCTS_OF]->(p:Product)
WHERE p.name = 'iPhone' AND u.name = 'alice'
RETURN d, p, u;

Adding Company Information

Now, suppose we want to query all devices produced by Apple Inc.. We can introduce a Company node and connect it to Product nodes.

CREATE (c:Company {name: 'Apple Inc.'});

MATCH (p:Product), (c:Company)
WHERE c.name = 'Apple Inc.' AND p.name in ['Macbook', 'iPhone', 'Apple Watch']
CREATE (c)-[:PRODUCES]->(p);

To list all devices produced by Apple Inc. along with their owners:

MATCH (u:User)-[:OWNS]->(d:Device)-[:PRODUCTS_OF]->(p:Product)<-[:PRODUCES]-(c:Company)
WHERE c.name = 'Apple Inc.'
RETURN u.name, d.name, p.name;

Final Graph Network

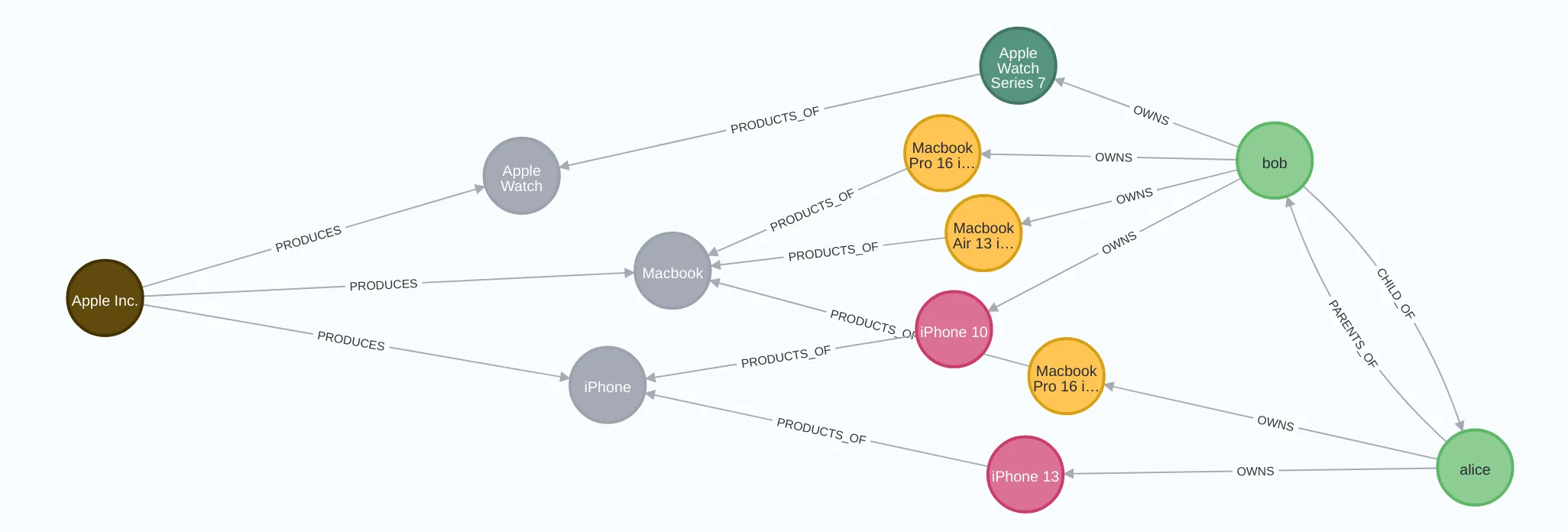

At this stage, the graph network should look like this:

Conclusion

In this tutorial, we explored data modeling for home device management using Neo4j and Cypher.

Experiencing different data modeling patterns is an excellent way to learn graph database techniques.

Neo4j is schema-less, allowing us to modify the data model dynamically without breaking existing relationships. You can extend this example by adding more custom requirements and experimenting with data modeling.

Why not try adding your own features and refining the model further?
